Specifications
| Pavo20 Pro (O3 PNP) | Pavo20 Pro (O4 Pro PNP) | |
| Wheelbase | 93.7mm | |
| Battery Connector | XT30 | |
| Battery Slot | 20mm * unlimited height | |
| FC | F4 2-3S 20A AIO FC V1 | |
| Frame | Pavo20 Pro Brushless Frame | |
| Motor | LAVA Series 1104 | 7200KV Brushless Motors | |
| Props | Gemfan 2218 3-Blade Propellers (1.5mm Shaft) | |
| Flight Time | 6’40” (with LAVA Series 3S 550mAh Battery) | |
| Camera Filter Installation | Vertical | |
| RX Version | ELRS, TBS, SBUS | ELRS, SBUS |

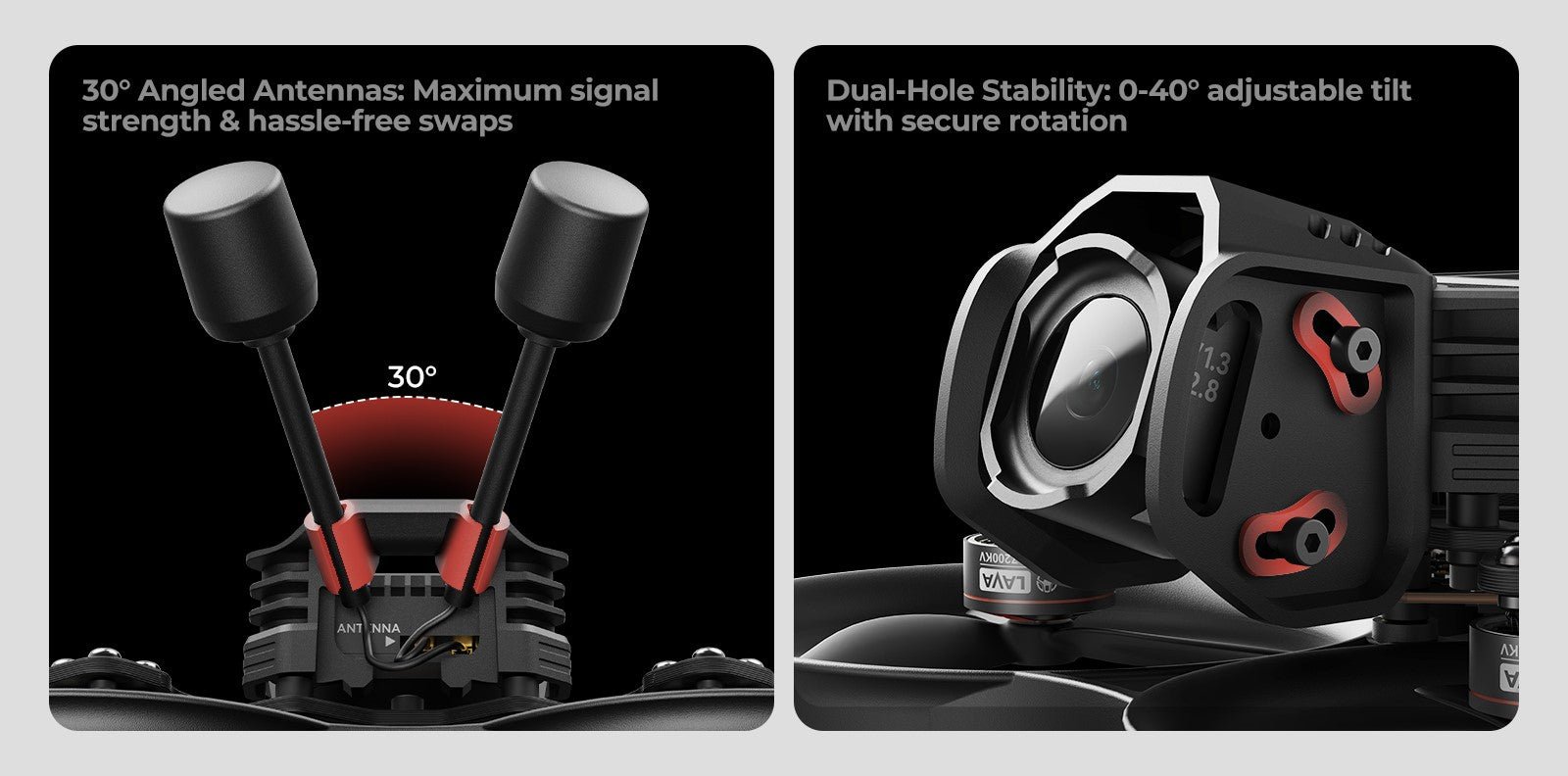

| HD VTX Bracket | O3 Air Unit Bracket | O4 Air Unit Pro Bracket |

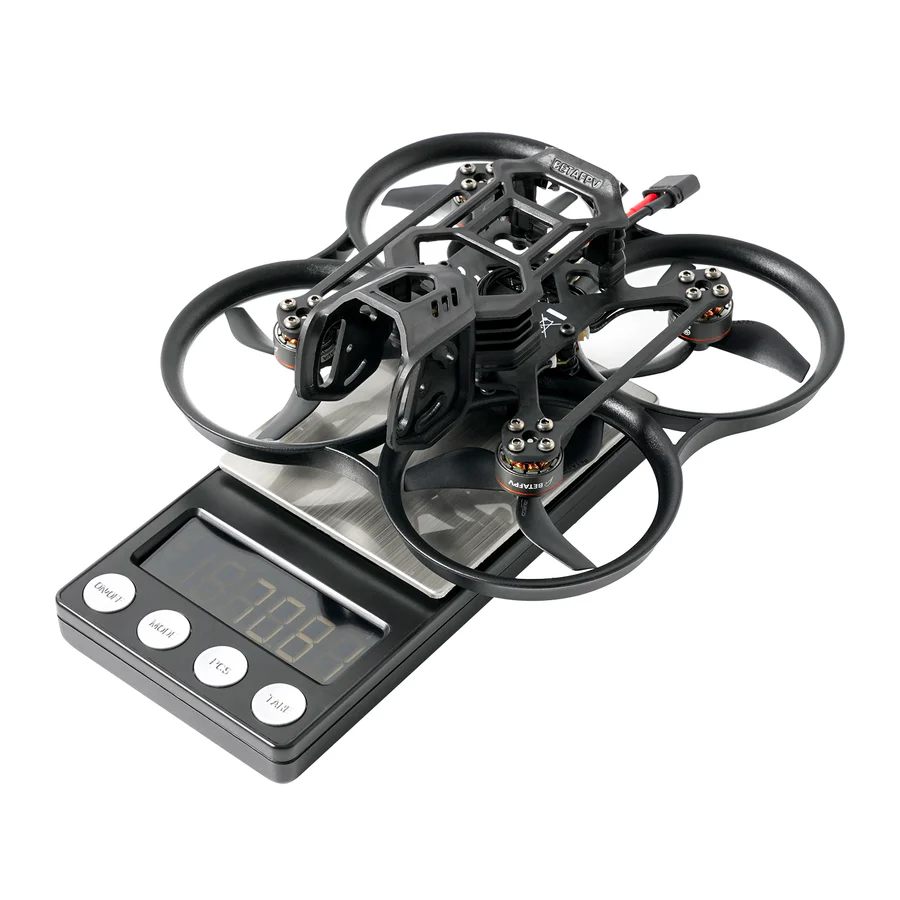

| Weight | 66.3g (O3 PNP Version) | 71g (O4 Pro PNP Version) |

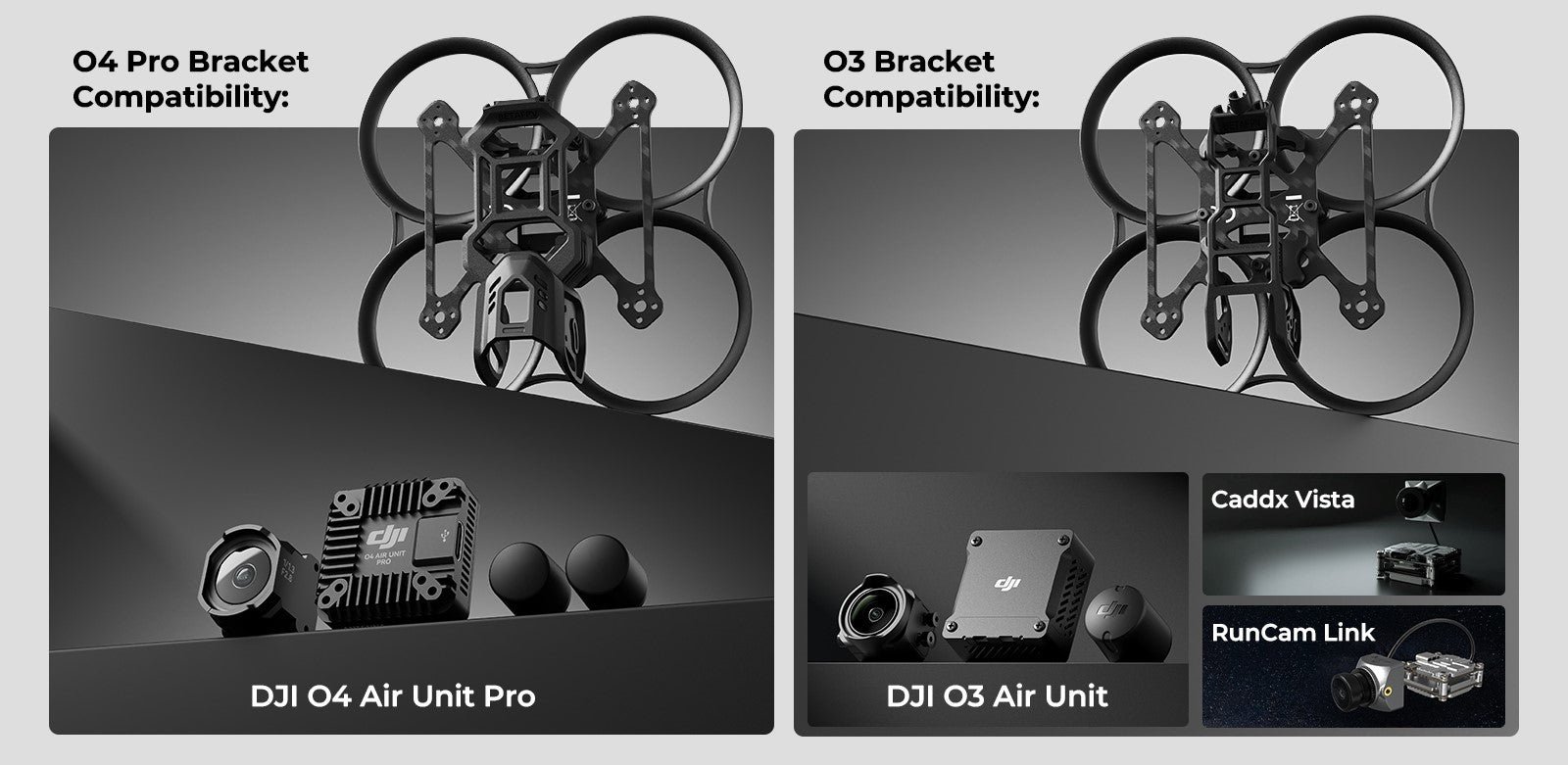

| Supported VTX | DJI O3 Air Unit/ Caddx Vista Kit / RunCam Link (with O3 Air Unit Bracket) | DJI O4 Air Unit Pro (with O4 Air Unit Pro Bracket) |
| Recommended Filter | ND Filter for O3 Camera | ND Filter for O4 Pro Camera |
| Recommended Battery | LAVA 3S 450mAh 75C Battery, LAVA 3S 550mAh 75C Battery, 3S 650mAh Battery | |
Recommend Parts

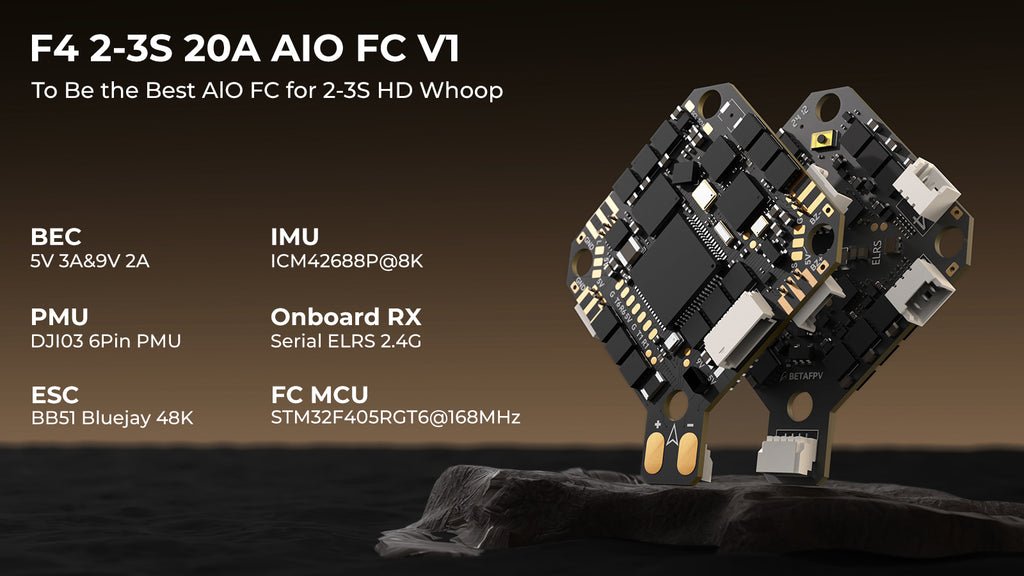

- FC&ESC: F4 2-3S 20A AIO FC V1
- Motor: LAVA Series 1104 | 7200KV Brushless Motors
- Propellers: Gemfan 2218 3-Blade Propellers (1.5mm Shaft)
- Frame: Pavo20 Pro Brushless Whoop Frame
- Battery: LAVA 3S 450mAh 75C Battery, LAVA 3S 550mAh 75C Battery
- Filter: ND Filter for O3 Camera, ND Filter for O4 Pro Camera
- VTX: DJI O3, DJI O4 Pro, Caddx Vista, RunCam Link
- Accessory: 5.8G VTX Antenna Packet, Drone Screw Pack
File
- FC firmware and CLI dump file (F4 2-3S 20A AIO FC V1) (Pavo20 Pro)
- FC firmware and CLI dump file (F405 2-3S 20A V1.0 FC) (Pavo20 Pro NightFire)
- Pavo20 Pro NightFire RGB Control Board Manual

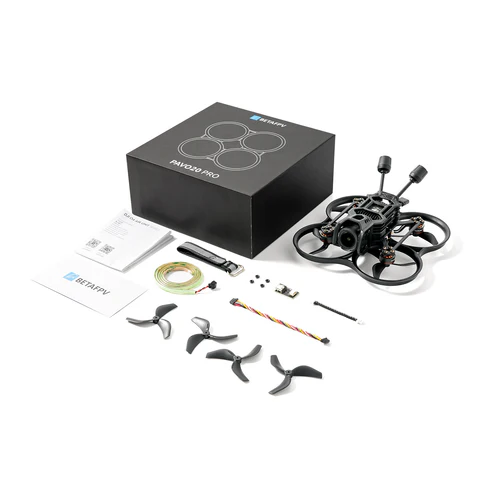

Pavo20 Pro Brushless Whoop Quadcopter (O4 Pro Version)
- 1 * Pavo20 Pro Brushless Whoop Quadcopter
- 1 * SH1.0 | 6Pin 100mm Cable
- 1 * Pavo Series COB LED Strip Accessory Kit
- 4 * Gemfan 2218 3-Blade Propellers (1.5mm Shaft)
- 4 * M2 Nuts
- 1 * PCBA | Type-C Adapter Board
- 1 * 4Pin Adapter Cable
- 1 * O4 Air Unit Pro User Manual
