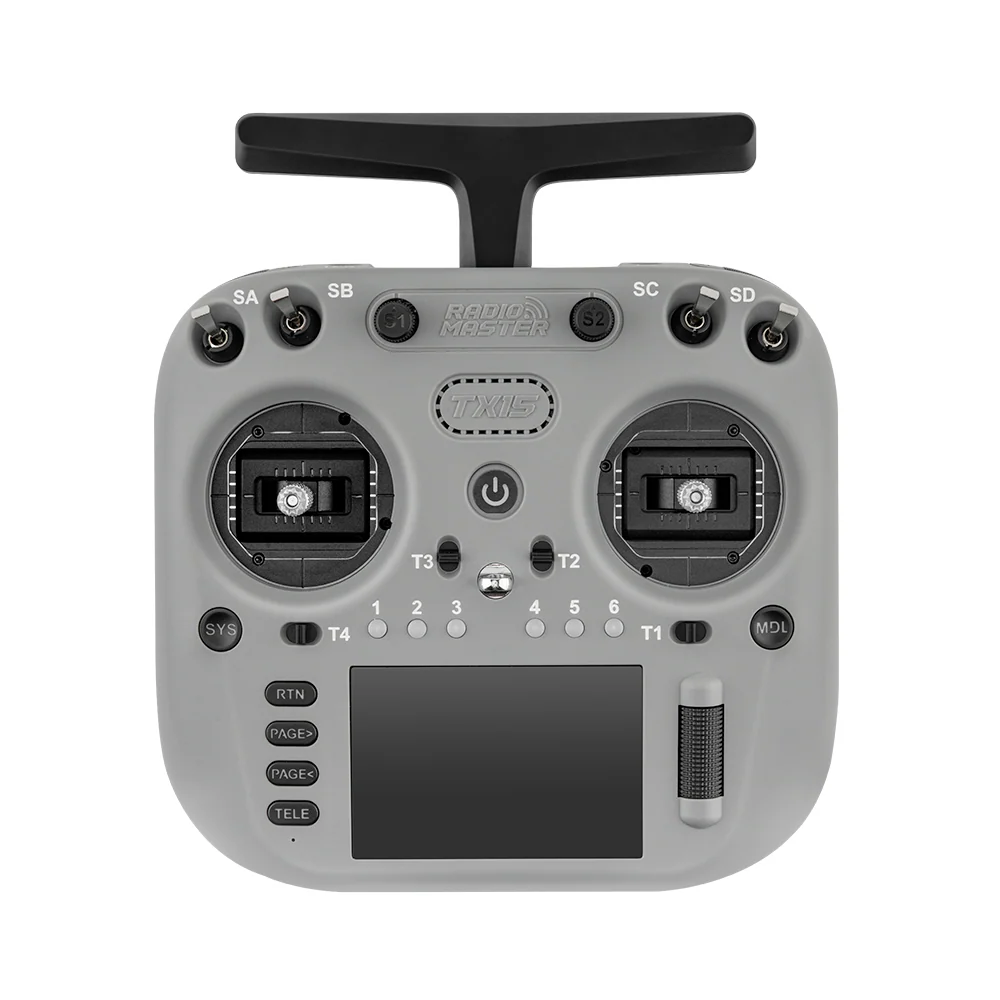

Radiomaster TX15 Radio Controller (ELRS)

Specifications

• Item: TX15 Radio Controller
• Size: 178*168*81mm
• Weight: 605g (without battery)
• Frequency: 2.400GHz OR Sub-G 900MHz
• Internal RF: ELRS 2.4GHz / Sub-G 900MHz
• Supported Protocols: Express-LRS
• Cooling Fan: Yes
• Transmitter Module: Built-in ELRS
• Built-in Flash Size: 4GB
• Built-in Microphone: Yes (Future expansion)
• Built-in Gyro: Yes (ICM-42607-C)
• MicroSD card (Not included): 32GB/FAT32 (Inserting a MicroSD card will disable the onboard flash)
• Antenna Gain: 2dB (transmit power adjustable)
• Current: 875mA at max power output
• Voltage Range: 6.6 – 8.4V DC
• Radio Firmware: EdgeTX (Transmitter) (requires version 3.0.0 or later)
• Module Firmware: ExpressLRS
• Channels: Max 16 channels (Receiver dependent)
• Display: 3.5-inch IPS touchscreen (480 x 320 resolution)
• Battery: 7.4V 2-cell Lithium-Polymer / Two 3.7V 18650 Lithium-Ion cells / 21700 5000mAh Battery (batteries not included)
• Connectivity: USB-C
• Gimbals: V5.0 Hall sensor gimbals (standard)
• Gimbal Sticks: M4
• Upgrade Method: USB-C (UF2)
• Module Bay: JR-compatible module bay for additional modules

User Manual

• TX15 User Manual
• TX15 Downloads

Associated Products

• TX15 Radio
• TX15 Max Radio
• AG02 CNC Hall sensor gimbals
• LED Gimbal Rings
• 18650 3200mAh 3.7V Battery
• 21700 5000mAh Battery
• SE/SF 3 Position Assembly for TX15 Radio

Package Includes

• 1 * TX15 Radio Controller

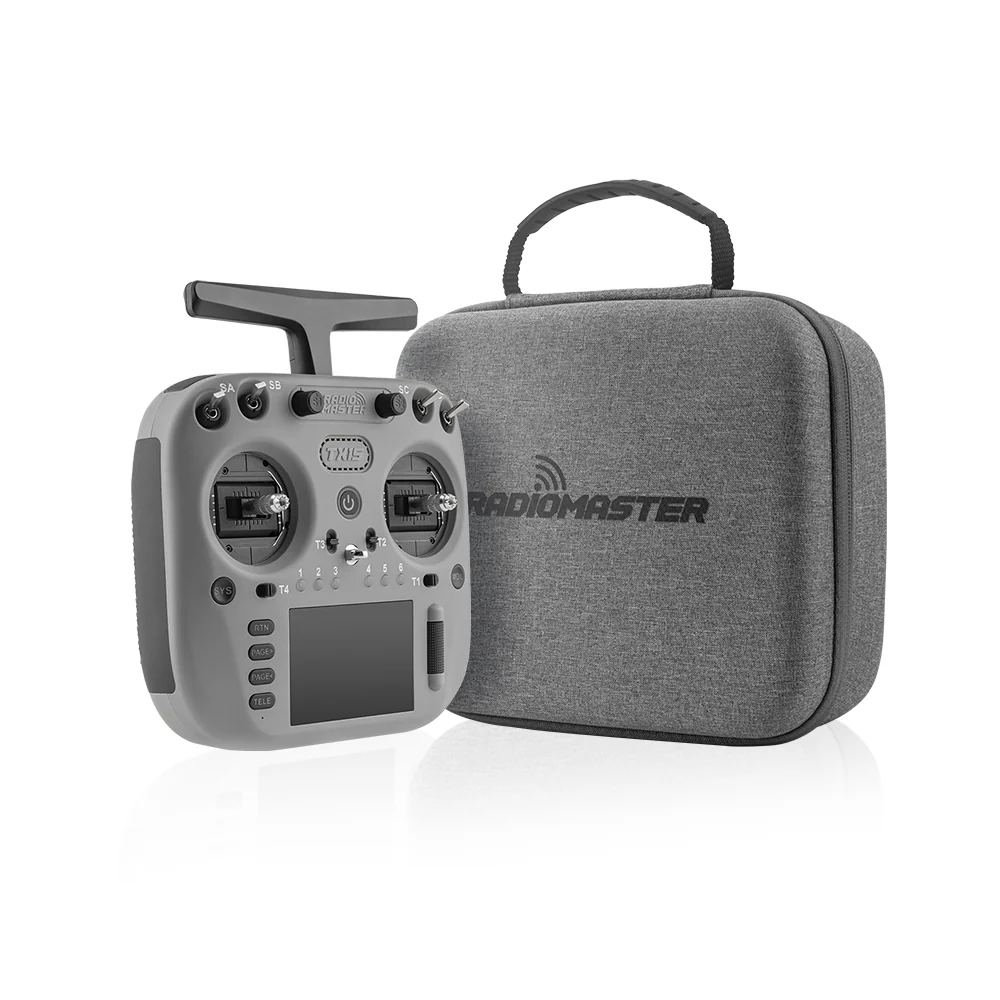

• 1 * Signature Carry Case
• 1 * Short 2-position Latching Shoulder Toggle Switch Assembly
• 1 * Short 2-position Momentary Shoulder Toggle Switch Assembly
• 1 * 18650 Battery Tray
• 1 * USB-C Cable
• 1 * Screen Protector
• 1 * 1.5mm Hex Wrench
• 4 * High Tension Gimbals Springs
• 2 * Gimbal Stick Set Screw
• 1 * Stickers Set
• 1 * User Manual
• 1 * Inventory Card
